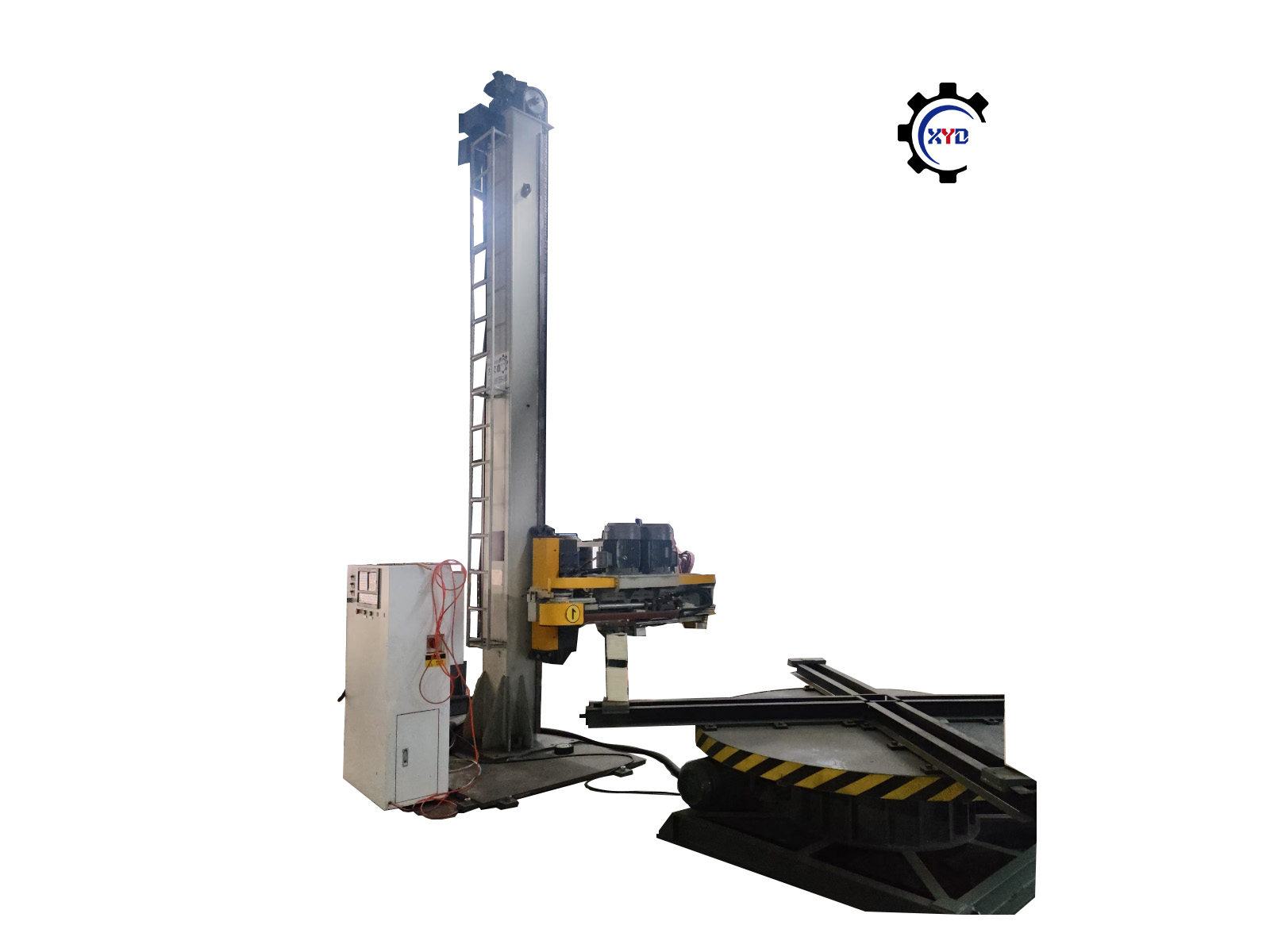

Vertical Tank Polishing & Grinding Machine

The XYD-CZJ2 Vertical Tank Polishing & Grinding Machine is developed by Anhui Xinyida Polishing Machinery Co., Ltd. It is specially designed for vertical polishing, grinding, and finishing of medium-to-large stainless-steel tanks. Equipped with dual polishing heads with interchangeable abrasive belts and flap wheels, and servo-controlled beam movement, this machine ensures efficient, stable, and precise surface finishing. It is widely used in food, beverage, pharmaceutical, chemical, and energy industries.

Vertical Tank Polishing & Grinding Machine (Double head) XYD-CZJ2

Consult

Introduction
Video

1. Product Overview

The XYD-CZJ2 Vertical Tank Polishing & Grinding Machine is developed by Anhui Xinyida Polishing Machinery Co., Ltd. It is specially designed for vertical polishing, grinding, and finishing of medium-to-large stainless-steel tanks. Equipped with dual polishing heads with interchangeable abrasive belts and flap wheels, and servo-controlled beam movement, this machine ensures efficient, stable, and precise surface finishing. It is widely used in food, beverage, pharmaceutical, chemical, and energy industries.

2. Key Features

Category	Description
High Load Capacity	Supports up to 8 tons, suitable for large and heavy tanks.
Dual Polishing Heads	Two polishing heads with quick-change abrasive belts and flap wheels for rough to fine finishing.
Precision Control	Beam movement (up/down, left/right) is servo-controlled for high accuracy.
Powerful Drive	Equipped with Ø800 rotary gear ring and 5.5kW vertical 4-pole motor for stable rotation of large tanks.
Smart Programming	Fitted with GuGe 218TEc dual-axis CNC system, supports secondary programming.
Auxiliary Cooling	Water spray and mist device reduces workpiece temperature and improves polishing quality.

3. Technical Specifications

Item	Specification
Workpiece Diameter	1–3 m
Max Workpiece Height	4 m
Max Load Capacity	8 tons
Polishing Heads	2 sets (interchangeable abrasive belts/flap wheels)
Motor Power	5.5 kW vertical 4-pole motor
Rotary System	Ø800 rotary gear ring
Abrasive Belt Size	2540 mm
CNC System	GuGe 218TEc dual-axis, supports re-programming
Beam Control	Servo-controlled up/down, left/right movement
Additional Device	Water spray & mist system

4. Processing Scope

Workpiece diameter: 1–3 m
Workpiece height: up to 4 m
Workpiece weight: ≤8 tons

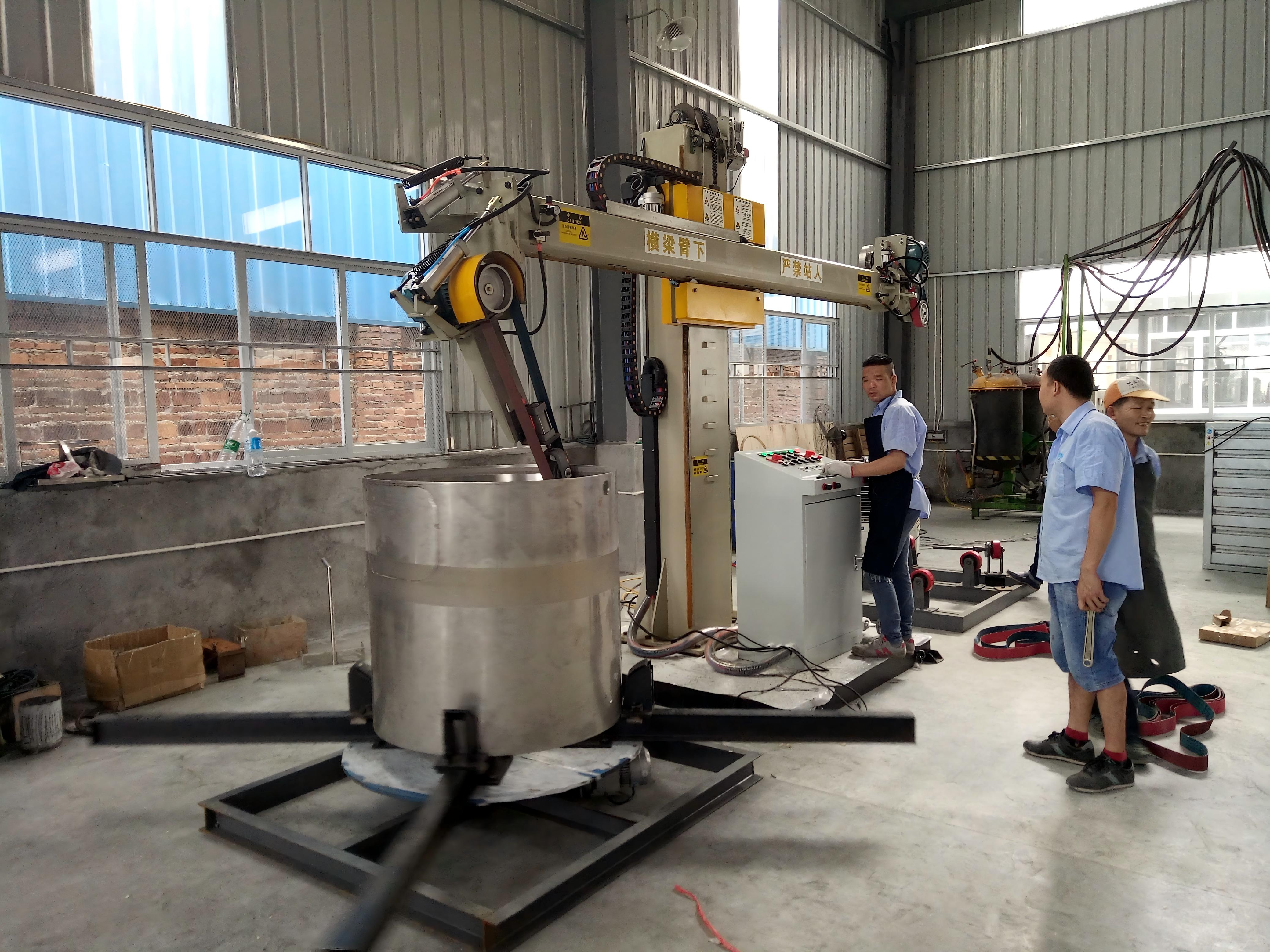

Processing: weld seam grinding, abrasive belt polishing, flap wheel finishing
Suitable for: stainless steel tanks, storage tanks, fermentation tanks, reactors
