Industrial Polishing & Grinding Machine

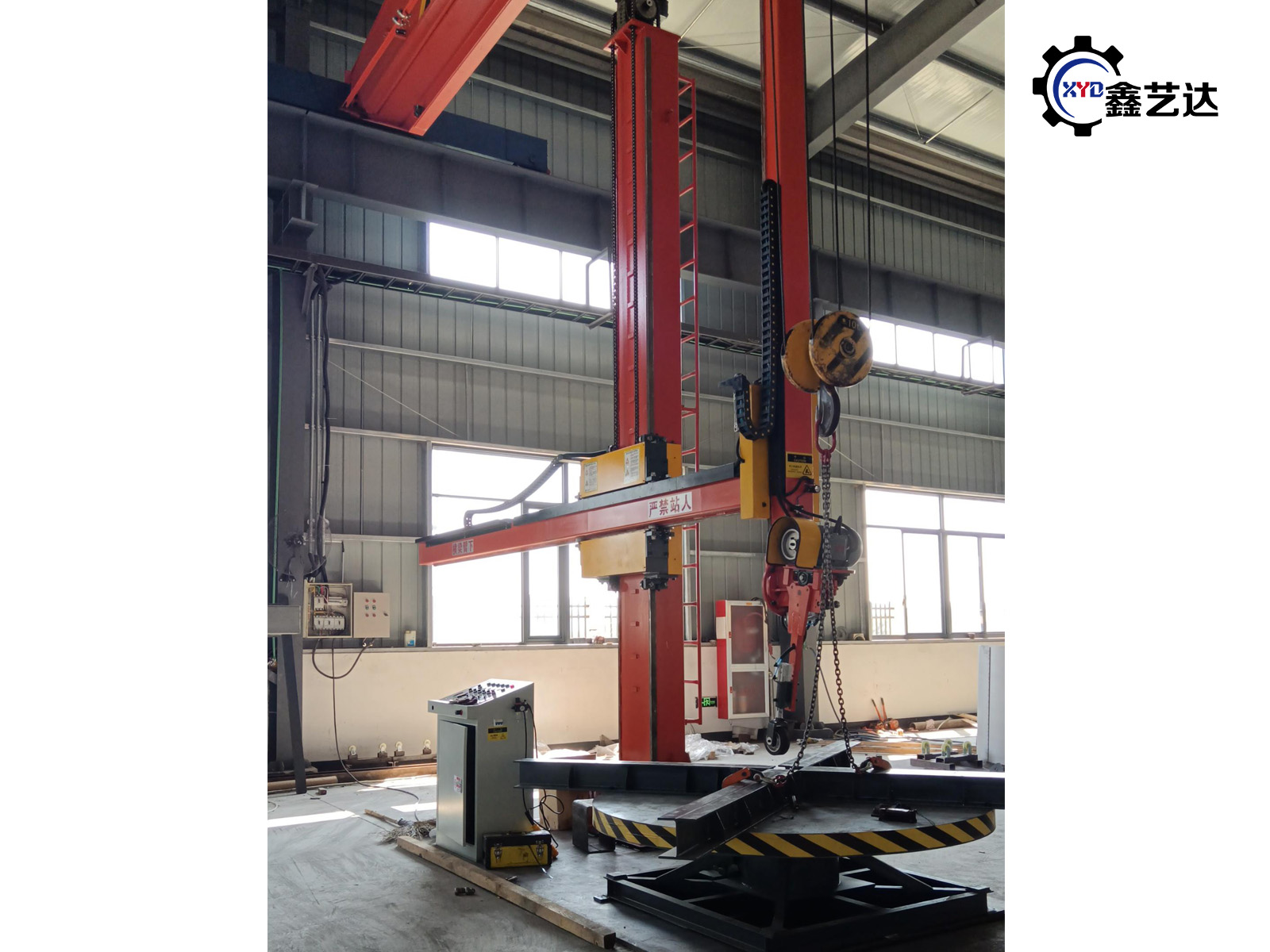

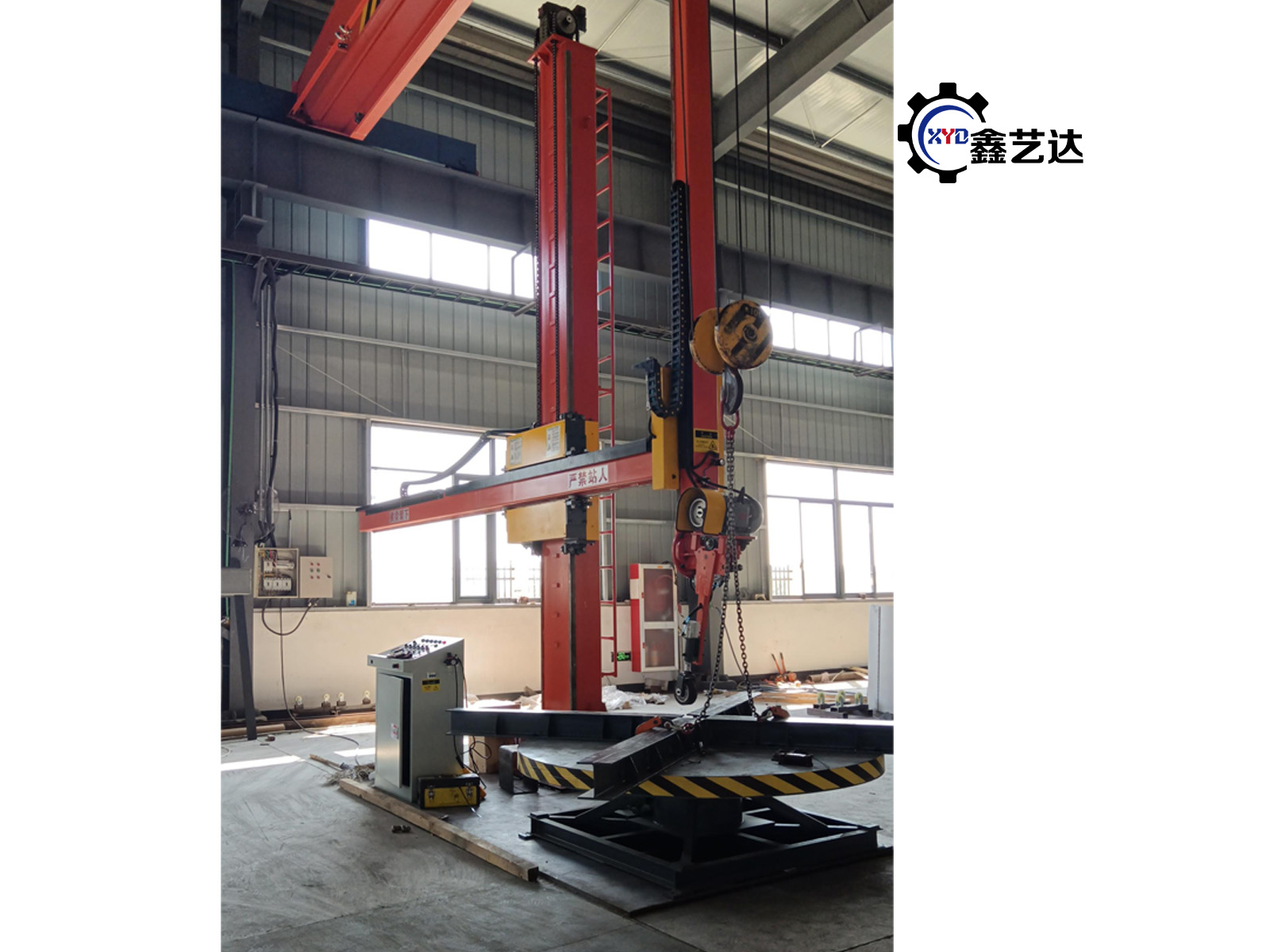

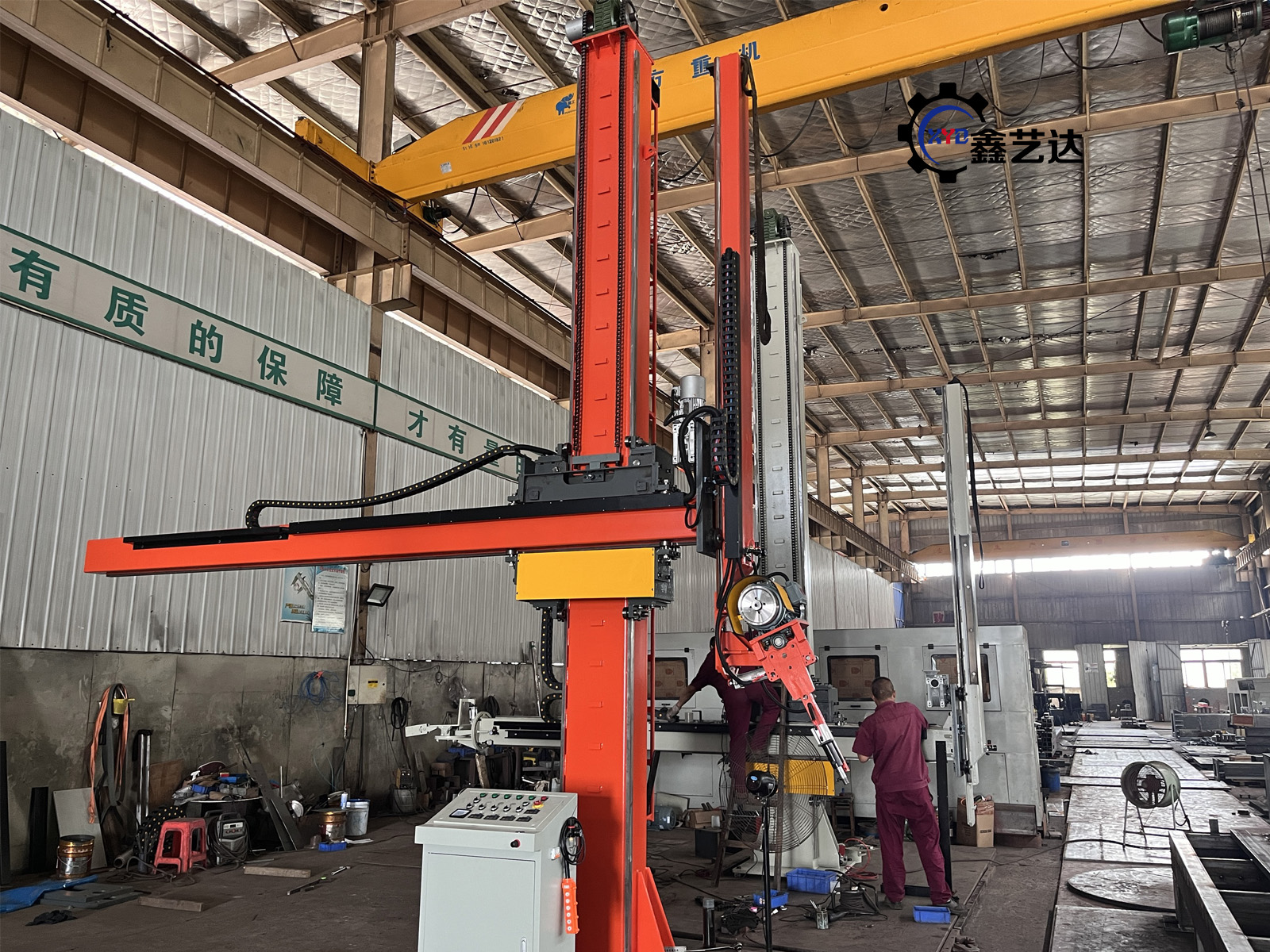

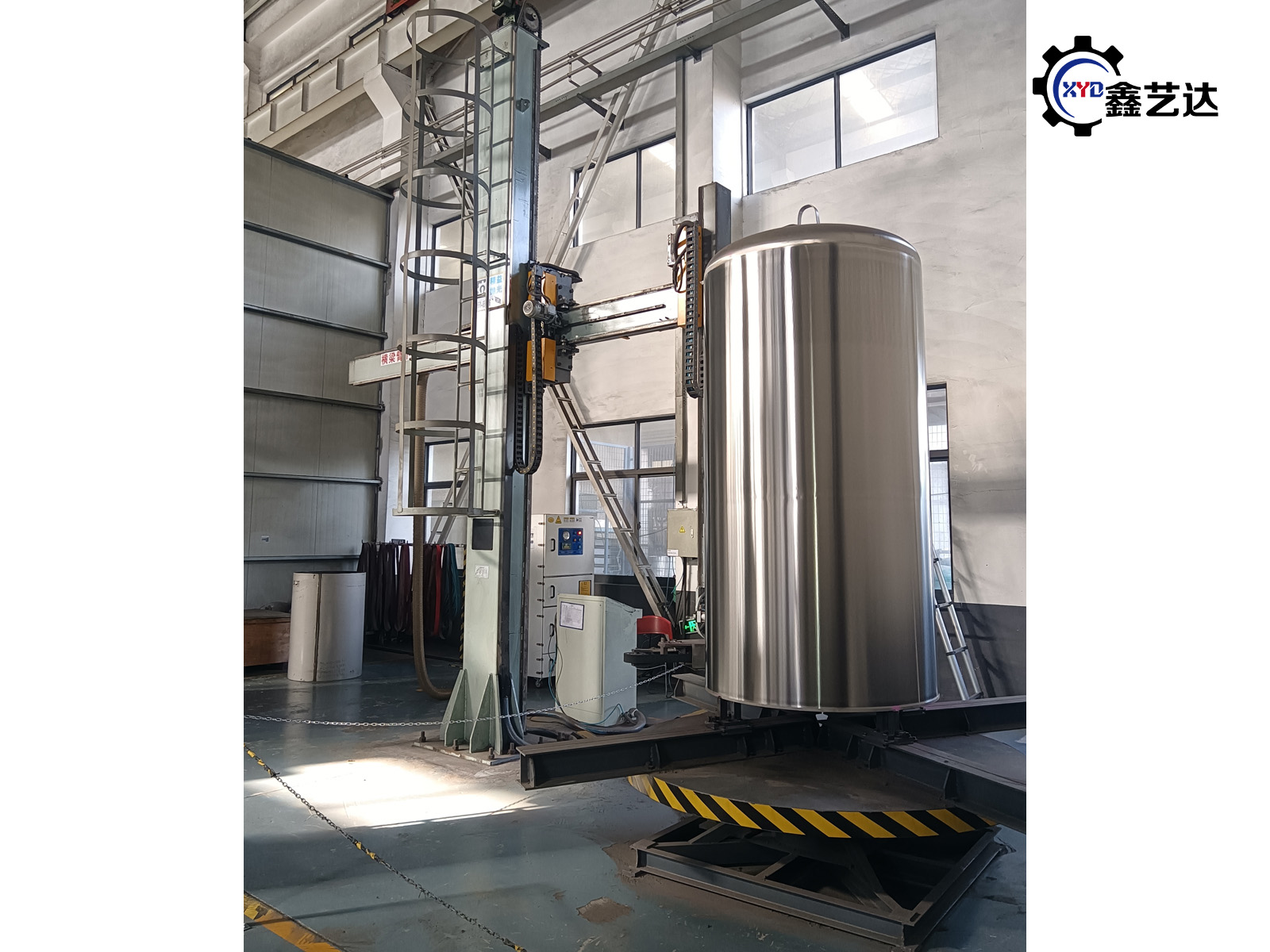

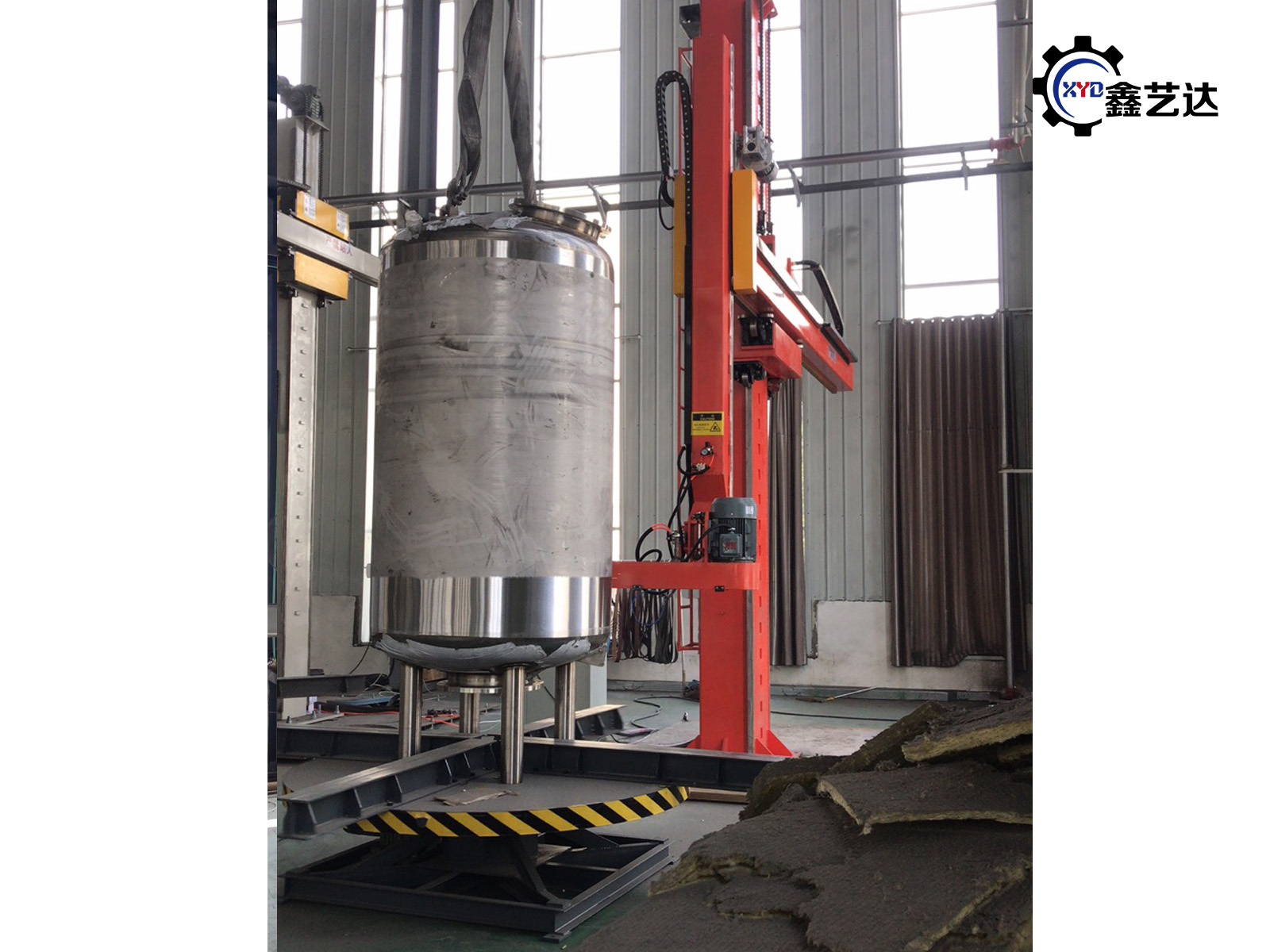

The Industrial Polishing & Grinding Machine (Enhanced Model) JY-CZJ-Y is a high-performance surface finishing equipment developed by Anhui Xinyida. It is specially designed for polishing and grinding the inner and outer surfaces of large stainless-steel dished heads, cylinders, and cones. With a reinforced column and beam structure, high-power polishing motor, and multiple frequency-controlled axes, this machine provides superior rigidity, heavy-load capacity, and precise finishing for large-scale workpieces.

Enhanced Industrial Polishing & Grinding Machine (XYD-JY-CZJ-Y)

Consult

Introduction
Video

1. Product Overview

The Industrial Polishing & Grinding Machine (Enhanced Model) JY-CZJ-Y is a high-performance surface finishing equipment developed by Anhui Xinyida. It is specially designed for polishing and grinding the inner and outer surfaces of large stainless-steel dished heads, cylinders, and cones. With a reinforced column and beam structure, high-power polishing motor, and multiple frequency-controlled axes, this machine provides superior rigidity, heavy-load capacity, and precise finishing for large-scale workpieces.

2. Key Features

Category	Description
Reinforced Structure	Heavy-duty column and beam with 24 rollers ensure rigidity and stability.
Large Workpiece Handling	Standard 5-ton rotary table, supports workpieces Ø500–3000 mm.
Efficient Polishing	Equipped with a 5.5 kW WANNAN motor, interchangeable abrasive belt, flap wheel, and cloth wheel.
Precise Control	Four-axis motion with Zhongcheng inverters for smooth operation.
Flexible Processing	Capable of rough grinding, fine polishing, and mirror finishing.
Reliable & Durable	Embedded base design ensures stable long-term continuous operation.

3. Technical Specifications

Item	Specification
Model	JY-CZJ-Y
Total Power	12 kW
Total Weight	4800 kg
Machine Size	4300 × 3000 × 6300 mm
Column	300 × 400 × 8 mm, height 5800 mm, stroke 3500 mm
Beam	150 × 250 × 6 mm, length 4500 mm, stroke 3000 mm
Small Column Stroke	2500 mm
Polishing Head	Single head, 5.5 kW WANNAN motor
Abrasive Belt Size	2540 × 55 mm, interchangeable with flap/cloth wheels
Control	4 Zhongcheng inverters
Rotary Table	5 tons capacity, Ø500–3000 mm
Rotary Motor	3 kW, variable frequency speed control, 5–20 r/min
